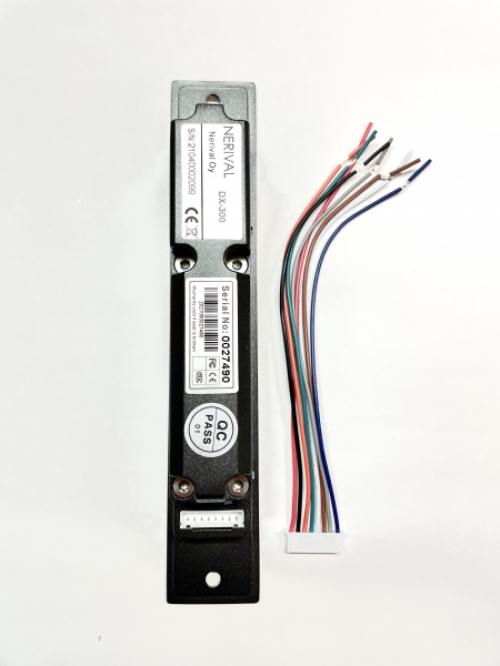

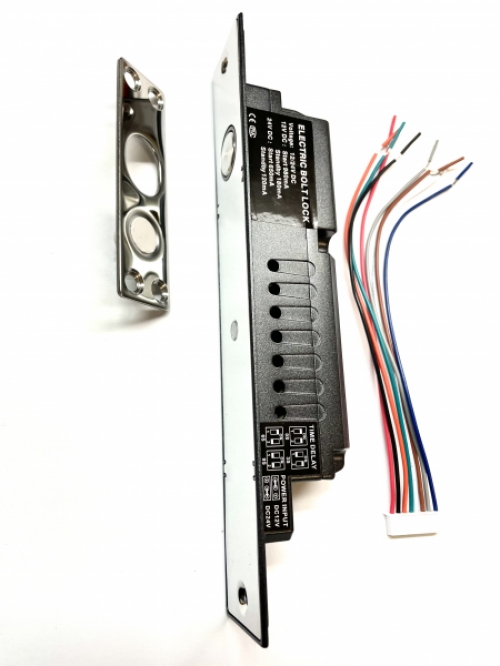

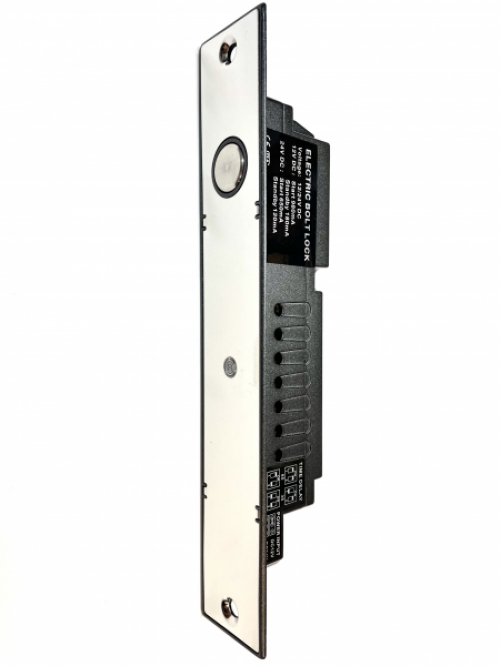

[51430] Electric bolt lock DX-300 for flush mounting
Features
Stainless steel flush-mounted electric bolt lock for different door types.
Thanks to its symmetrical design, it can be installed either from the right or left door.
Locked when power on.
Status data for door and lock latch and adjustable lock delay.
Technical specifications
Structure: Stainless steel for flush mounting.
Dimensions
Frame: 205x 35x 36.5mm
Counter plate: 90x 25x 2mm
Supply voltage / current:
12VDC/180mA, 24VDC/120mA stabilized ± 10%.
Input voltage selection 12VDC or 24VDC.
Current when locked: 12VDC/0.98A and 24VDC/0.65A
Lockout delay (before locking): adjustable for 0, 3, 6, 9 s
Status of the lock:
Relay output potential-free switch contact 1A/30 VDC.
Door status information with NO contact 0.1A/30 VDC.
Locking status indicator LED: red locked, green open
Identification of door status information with Hall sensor.
Detection distance: Between the lock and the counter plate max. 8mm
Weight: 0.55kg
