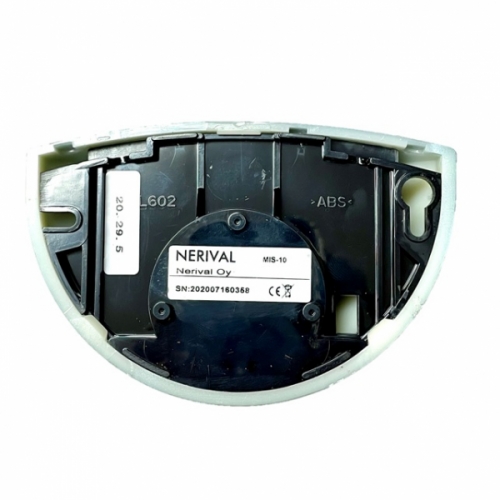

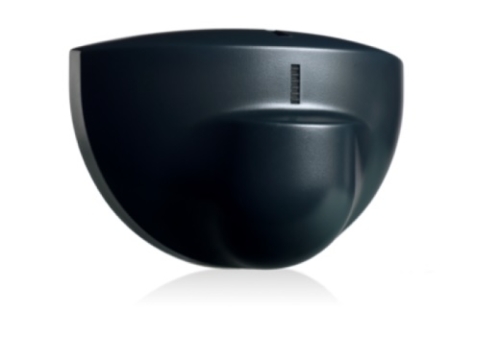

[33400] Microwave radar motion sensor MIS-10, black
Features
Microwave radar is used as a motion sensor to open the door.
The radar gives an opening impulse when it detects movement.
Technical specifications
Implementation technology: Microwave
Transmission frequency: 24.125GHz
Transmitting power: <20dBm ElRP
Transmission frequency density: <5mW/cm2
Maximum installation height: 3m
Inclination: Vertical 0 to 90, horizontal 30 to +30
Detection range (installation height=2.2m): 4m(W)x2m(D)
Minimum detection speed: 5cm/s
Power supply voltage: 12V-24V AC/DC +30%/-10%
Power frequency: 50-60 Hz
Power consumption: <2W(VA)
Relay output: Potential-free
Maximum contact load: 42VAC-60VDC / 1A
Operating temperature: -20C - +55C
Protection level: IP52
Shell material: ABS plastic
Shell color: Black
Dimensions: 120 x 80 x 50mm
Weight: 210g

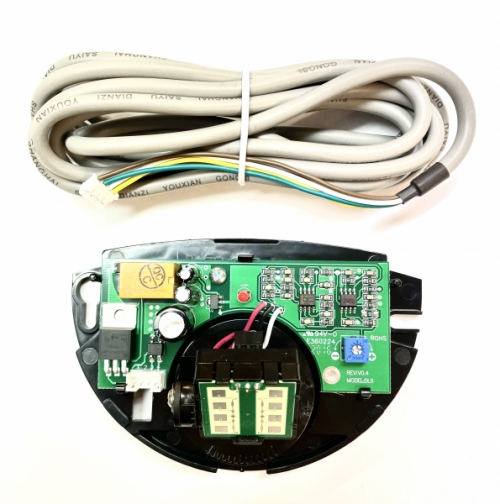

Wire length: 2.5 meters
