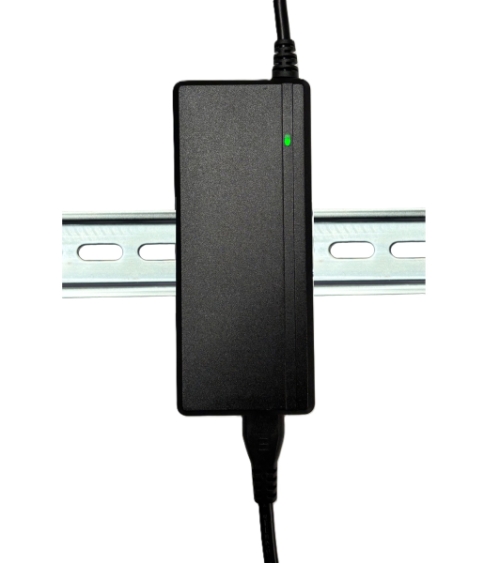

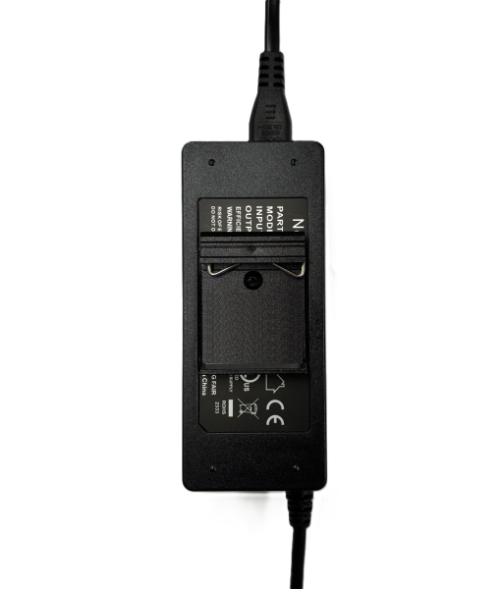

[10600] SIE65A-Din Power supply 12VDC 5,0A
Features
EA 1060 A- power supply is a switch-mode transformer, where the output voltage of the transformer remains stable regardless of load through secondary side regulation.
Automatic overcurrent and overvoltage protection allows the device to withstand without damage to the secondary-side short circuits.
It can be used for example in electric door locks, electromagnets, access control systems, cameras etc. Also suitable for alarm systems, fire and signaling systems as well as auxiliary voltage for demanding industrial applications
Technical specifications
Installation on DIN-rail 35mm
Output voltage 12 VDC stabilized ± 5%
Supply voltage 90-264 VAC, 47-63 Hz
Output current 5000 mA DC
Power cord 1.8 m Euro VDE AC cable
Output cable 1.8 m without plug.
Protection class IP 20 /At order IP 55, IP 65
Ripple voltage 1%.
Efficiency 88%
LED indicator Output OK
Dimensions W x H x D 60x 107x 30 mm.
Operating temperature 0 to 40C
Approvals CE, UL, CUL, TUV, CB
