[60060] NCP-110 Call point, resettable, with LED lights (without text)

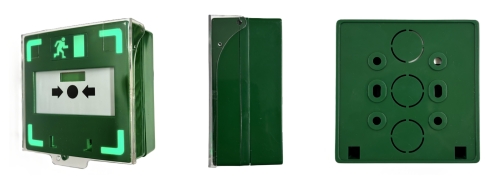

NCP-110 Call point, resettable, with LED lights (without text)

Features

The release button command is given manually to the control center or the actuator.
It can control, for example, magnetic locking, reversible solenoid locks,
smoke extraction, air conditioning and various alarms.

Technical specifications

Installation: Surface/flush mounting
Operating voltage: 12-24VDC
Power consumption:
12VDC / 18mA standby, 75mA activated
24VDC / 11mA standby, 41mA activated

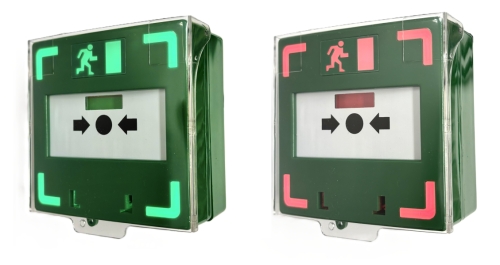

LED indication: On/off/flashing
Green ready, Red activated
Buzzer function: Continuous/intermittent/off
Number of contacts: 3 pcs
Contact function: COM/NO/NC, changeover contact
Contact material: Silver
Contacts max. current rating: 24VDC/2A
Color: Green
Material: ABS, cover PC
Dimensions: 93 x 90 x 45/22mm (height, width, depth)
Weight: 208g
Operating temperature: -10C to +40C
Max. humidity: 95%
Approvals: CE, Rohs
Includes clear cover with sealing option and key for reset
Also available in Swedish #61210
Spare key #61310
